High Temperature Tunnel Furnace: Features, Applications, and Maintenance

Introduction

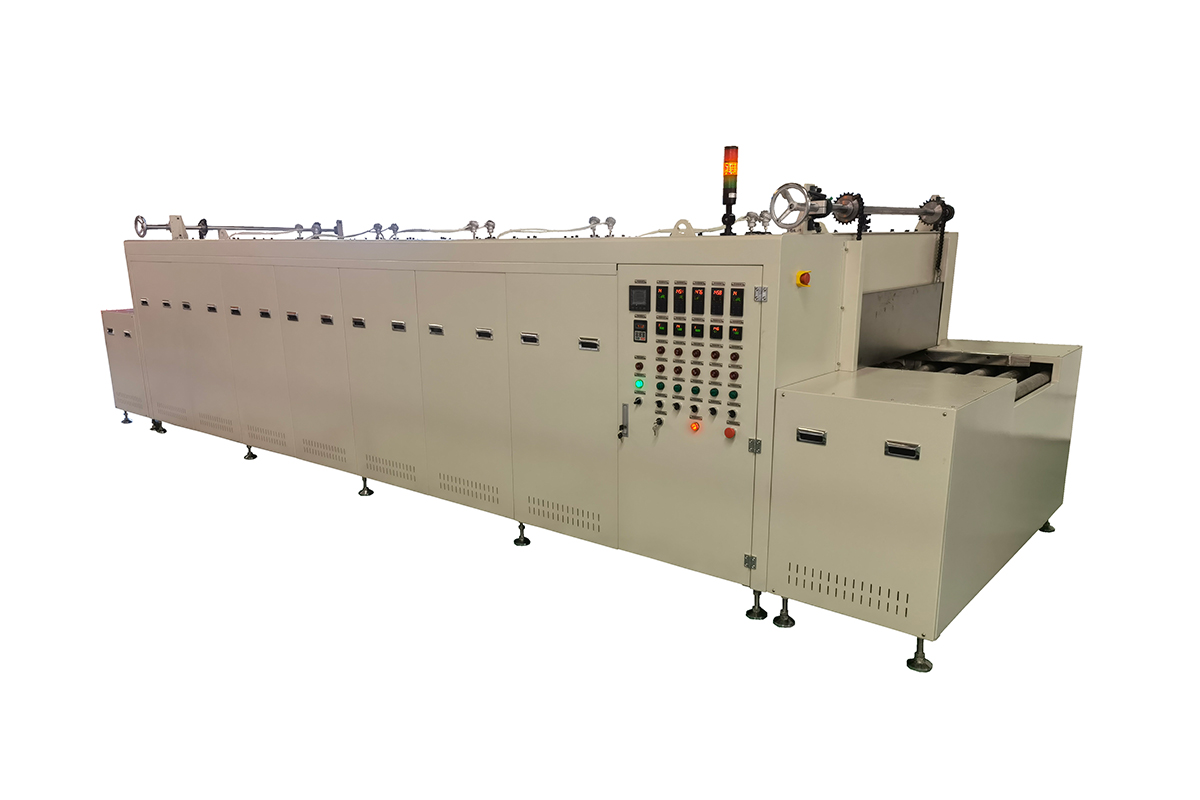

A High Temperature Tunnel Furnace is a specialized industrial heating system designed for continuous thermal processing of materials at elevated temperatures, typically ranging from 1000°C to 1800°C. It consists of a long, insulated chamber with a conveyor system that transports workpieces through controlled heating zones. These furnaces are widely used in industries requiring precise temperature uniformity, high throughput, and consistent results.

Key Features with Technical Data

• Temperature Range: Capable of operating between 1000°C to 1800°C, with advanced models reaching up to 3000°C using specialized heating elements like tungsten or graphite.

• Heating Elements: Utilizes silicon carbide (SiC) rods (up to 1600°C), molybdenum disilicide (MoSi2) elements (up to 1800°C), or resistance wire (up to 1200°C).

• Temperature Uniformity: Maintains ±1-5°C variation across the heating zone, critical for precision applications.

• Chamber Dimensions: Typical working zones range from 200mm (W) × 200mm (H) × 600mm (L) to 1000mm × 1000mm × 5000mm for industrial-scale units.

• Heating Rate: Programmable rates from 1°C/min to 30°C/min, with rapid cooling options available.

• Atmosphere Control: Can operate in air, inert gas (N2, Ar), or vacuum environments with oxygen levels below 10 ppm.

• Conveyor Systems: Belt speeds adjustable from 0.1 to 10 meters per minute, with load capacities up to 200 kg/m².

• Insulation: Multi-layer refractory materials including ceramic fiber (up to 1600°C) and high-purity alumina (up to 1800°C), reducing heat loss by 30-40% compared to traditional brick linings.

Applications

1. Ceramics and Powder Metallurgy

Used for sintering advanced ceramics (Al2O3, ZrO2) and metal powders at 1400-1700°C with ±2°C uniformity. Critical for producing cutting tools, bearings, and electronic substrates.

2. Semiconductor Manufacturing

Performs diffusion processes for silicon wafers at 1200-1300°C in ultra-clean environments with particulate levels below Class 100 standards.

3. Glass Processing

Anneals specialty glass at 600-800°C with conveyor speeds of 2-5 m/min, achieving stress reduction below 5 MPa.

4. Battery Materials

Calcinates lithium-ion cathode materials (NMC, LFP) at 800-1000°C under O2 < 100 ppm controlled atmosphere, crucial for battery performance.

5. Metal Heat Treatment

Hardens alloy steels at 900-1100°C with quenching rates up to 50°C/sec, achieving Rockwell hardness of HRC 60-65.

6. Research and Development

Used in material science labs for continuous experiments with programmable profiles up to 20 segments and data logging at 1Hz sampling rates.

Maintenance Procedures

Daily Maintenance

• Inspect heating elements for warping (>3mm deviation requires replacement)

• Check thermocouples (Type K, S, or B) with calibration drift >±2°C

• Remove debris from conveyor belt (accumulation >1mm affects tracking)

• Verify gas flow rates (typically 10-50 L/min for inert atmospheres)

Weekly Maintenance

• Measure insulation resistance (>1MΩ at 500VDC)

• Lubricate bearings with high-temperature grease (up to 300°C)

• Check belt tension (deflection <5% of span length)

• Clean optical pyrometer lenses (for >95% transmission)

Quarterly Maintenance

• Perform full temperature uniformity survey (TUS) per AMS2750E

• Replace worn refractory (when cracks exceed 3mm width)

• Recalibrate all sensors to NIST traceable standards

• Inspect power contacts (resistance <0.1Ω)

Annual Maintenance

• Overhaul conveyor drive system (check gear wear <0.2mm)

• Pressure test gas delivery systems (1.5× operating pressure)

• Replace aged insulation (when thermal losses exceed 15%)

• Update control software and firmware

Troubleshooting Guide

Safety Considerations

• Install oxygen monitors (alarm at <19.5% or >23.5% O2)

• Maintain clearance of 1 meter around furnace for heat dissipation

• Use personal protective equipment (PPE) rated for 200°C surface temp

• Implement emergency shutdown that cools at <10°C/min to prevent thermal shock

The high temperature Tunnel Furnace represents a critical asset for industrial thermal processing, combining advanced heating technology with precision control systems. Proper maintenance following manufacturer guidelines and industry standards (such as AMS2750 and CQI-9) ensures optimal performance and extends service life beyond 10 years of continuous operation.
