High-Performance Tunnel Furnace: Features, Applications, and Maintenance

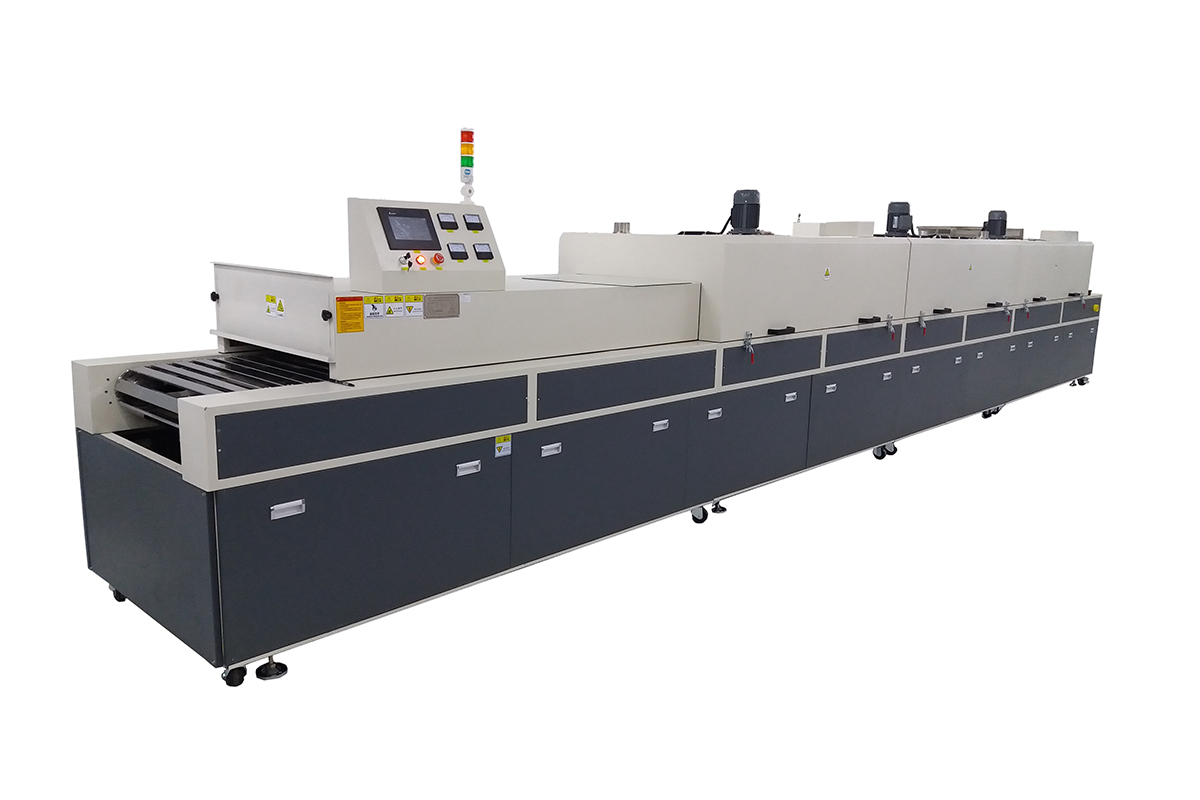

A High-Performance Tunnel Furnace is an industrial heating system designed for continuous thermal processing of materials. It consists of an elongated chamber with controlled temperature zones, allowing precise heat treatment of products as they move through the furnace on a conveyor system. These furnaces are widely used in industries requiring high throughput, uniform heating, and energy efficiency.

Key Features with Technical Data

• Uniform Temperature Distribution: Advanced heating elements and airflow systems ensure temperature uniformity within ±2°C across the entire working zone, even at operating temperatures up to 1200°C.

• High Energy Efficiency: Incorporates ceramic fiber insulation with thermal conductivity as low as 0.12 W/m·K, reducing heat loss by up to 40% compared to conventional furnaces.

• Precise Temperature Control: Equipped with PID controllers capable of maintaining setpoints within ±1°C, with ramp rates adjustable from 0.1°C/min to 30°C/min.

• Customizable Length: Modular design allows chamber lengths from 2 meters to 30 meters, with standard widths of 300mm to 1500mm.

• Advanced Atmosphere Control: Can maintain oxygen levels below 10ppm for inert atmosphere applications, with gas consumption rates as low as 5m³/hour.

Applications

High-performance Tunnel Furnaces serve critical roles in multiple industries:

1. Electronics Manufacturing

Used for PCB soldering (reflow temperatures 220-260°C), component curing, and semiconductor processing. The precise temperature profiles prevent thermal shock to delicate components.

2. Automotive Industry

Applied for powder coating curing (typically 180-200°C for 10-15 minutes), brake pad sintering, and metal component annealing processes.

3. Ceramic Production

Essential for firing ceramic tiles and technical ceramics, with firing cycles ranging from 800°C to 1600°C depending on material requirements.

4. Glass Processing

Used for tempering (heating to 620-680°C followed by rapid quenching) and annealing processes to relieve internal stresses.

5. Metallurgy

Employed for continuous annealing of steel strips (700-900°C), brazing operations, and heat treatment of metal parts.

Maintenance Procedures

Proper maintenance ensures optimal performance and extends furnace lifespan:

Daily Maintenance

• Inspect heating elements for signs of oxidation or damage (resistance should not vary more than 10% from nominal values)

• Check conveyor belt tension (typically 15-20N/mm²) and alignment (maximum deviation 2mm over 3m length)

• Verify thermocouple readings against reference standards (deviation should not exceed ±2°C)

Weekly Maintenance

• Clean furnace interior with non-abrasive tools to remove debris (maintain clearance of at least 50mm from heating elements)

• Inspect insulation for integrity (hot face temperature should not exceed 80°C above ambient)

• Lubricate conveyor bearings with high-temperature grease (NLGI grade 2, viscosity 150-220 cSt at 40°C)

Monthly Maintenance

• Perform calibration of all temperature sensors using traceable standards

• Check atmosphere system seals and gas flow meters (leak rates should be below 0.5% of total flow)

• Test safety interlocks and emergency stop systems

Annual Maintenance

• Replace worn heating elements (typically after 10,000-15,000 hours of operation)

• Inspect and refurbish refractory lining (repair any areas with cracks exceeding 1mm width)

• Complete electrical system inspection (megger test insulation resistance >1MΩ)

Troubleshooting Common Issues

Safety Considerations

When operating Tunnel Furnaces:

• Always wear appropriate PPE (heat-resistant gloves, face shield)

• Maintain proper ventilation (minimum airflow 20m³/min for gas-fired models)

• Install CO detectors when using reducing atmospheres

• Follow lockout/tagout procedures during maintenance

• Keep emergency quenching systems operational
