We are a research and development, manufacturing, and sales manufacturer specializing in soft porcelain production lines, tunnel furnace baking equipment, industrial ovens, UV curing machines, and other related equipment.
Our company's products are widely used in industries such as soft porcelain, automobiles, materials, lithium batteries, electronics, hardware, mechatronics, printing, and spraying.

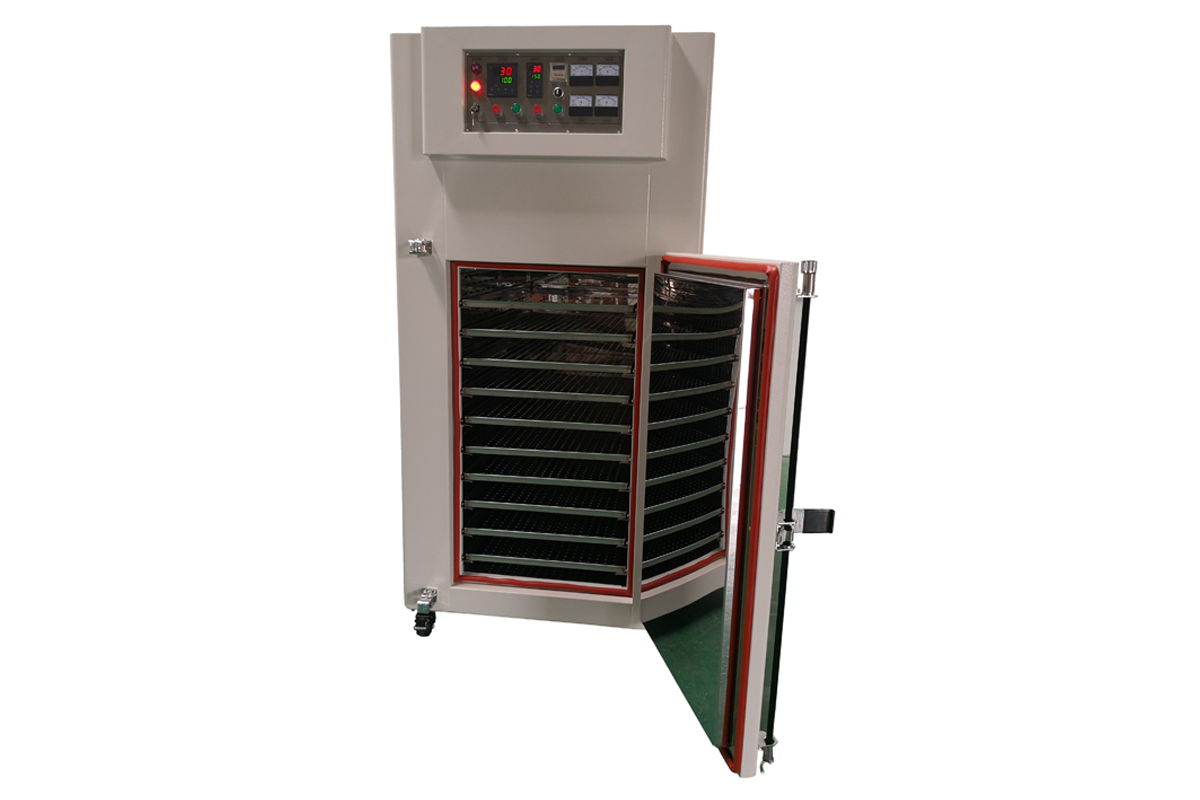

| Model | BA-1002 |
| Dimension | h1860*w1000*d780mm |
| Inner Dimension | h1000*w600*d500mm |
| Total power | ≈9KW |
| Power supply | AC220V/50HZ AC380V/50HZ |
| Temperature range | 50-250℃adjustable |
| Temperature rise rate | 8 degrees/min |
| Air transportation method | Three-sided circulating air transportation or horizontal circulating air transportation |
| Temperature uniformity | ±1.3% (empty furnace test) |
| Material | The shell is made of 2.0mm thick cold rolled steel plate bent and welded/the inner liner is made of 1.5mm thick 304# stainless steel plate. |
| Protection Function | PID self-tuning, automatic constant temperature, automatic timing, the temperature to the timer alarm power-off, over-temperature power-off, power failure protection, motor overload protection, such as control line fuse, no fuse switch and other functions to protect the |
| Product Characteristics | 1. Using intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output or with SCR power regulator output, can accurately control the accuracy of the control temperature. 2. According to the product characteristics of the design of the circulating air ducts, temperature uniformity. Using high temperature silicone double sealing, beautiful appearance and no pollution. |
| Scope of application | Electronics industry (semiconductor, LCM, LCD, LED, MLCC, TFT, precision ceramics), PCB, PE, electrolytic capacitors, silicone, rubber and plastic keyboards, computers, motors, communications, hardware, chemicals, sports equipment, printing, pharmaceuticals, footwear, automotive parts and other industrial baking, drying, preheating and tempering, aging and other purposes. |
| Remarks | The above industrial ovens can be customized according to customer requirements, customized different specifications of non-standard industrial ovens |
